Fastening disc with eyelet
GN 2344-NI-4,3-12-E stainless steelNI - Stainless steel
Item-no.: 1344384Supplier number: 2344-NI-4,3-12-Ecustoms tariff number: 73182900EAN: 4045525130647
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description

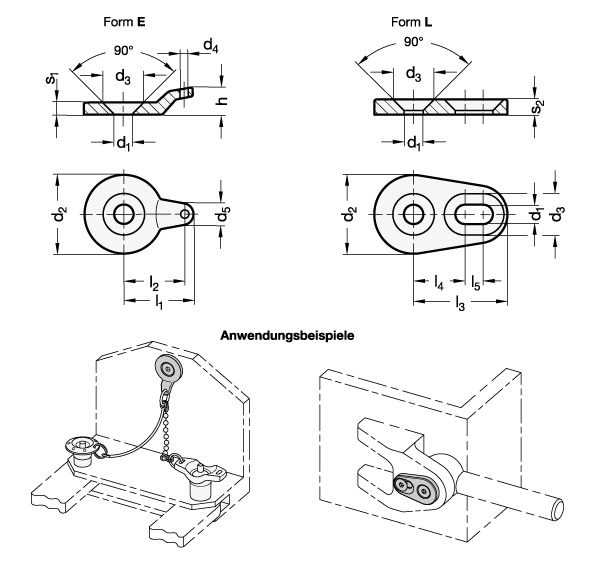

Retaining washers GN 2344 are universally usable standard parts. Type E is suitable for use in connection with retaining cables and ball chains to mount other standard or securing parts in order to prevent loss. Type L is suitable, for example, for mounting bolts or axes, which can thereby simultaneously be secured in an axial and also in a radial position.
Attributes
Diameter d
4.3
Diameter d2
12
Form
E - with eyelet
L1
13.5
L2
10.8
Material
NI - Stainless steel
RoHS
Ja
Suitable spanner ring Ø for Form E
14
Weight
0.002 kg
d3
9.2
d4
2.5
d5
6
h
7
s1
3
