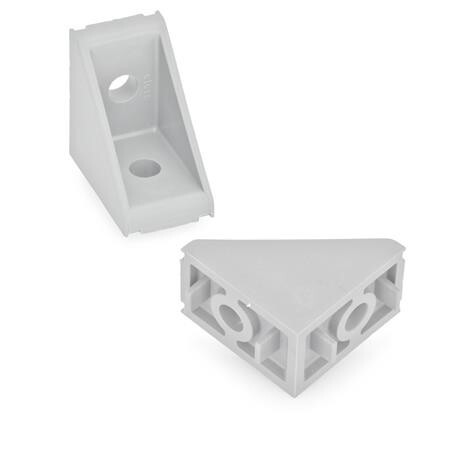

Mounting bracket
GN 561-19-8-40-40-B-1 Elesa 156113KU - Plastic
Item-no.: 1205975Supplier number: 561-19-8-40-40-B-1EAN: 4045525862654
PU (Packaging): 20 PieceQuantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description
In order to be able to utilize the adjustment range of the types with slotted hole for fixing angle pieces GN 561, it is recommended to use mounting screws with a low head, e.g. socket cap screws DIN 6912 or socket button head screws ISO 7380. Fixing angle pieces GN 561 are components designed for universal use.
Attributes
Anzugsmomentin Nmmin.
5
Belastbarkeit M in Nm max.
25
Code number
1 - without cover cap
Form
B - 2 x holes d, with guide bars
Groove width n
8
L1
14.5
L2
13
Length s1 s1
40
Length s2 s2
40
Material
KU - Plastic
RoHS
Ja
Tightening torque in Nm min.
5
Weight
0.014 kg
Width b1
19
b2
8.5
b3
15
d
8.5
hmin.
4
l3
22.5
s3
7
