Ventilation cover with thread
GN 764-47-G1/4-F Elesa 156833ST - Steel
Item-no.: 1213299Supplier number: 764-47-G1/4-FEAN: 4045525567214
Quantity:
1 PiecePackable
Item available in 9 variants:
Price and stock visible after login
Description

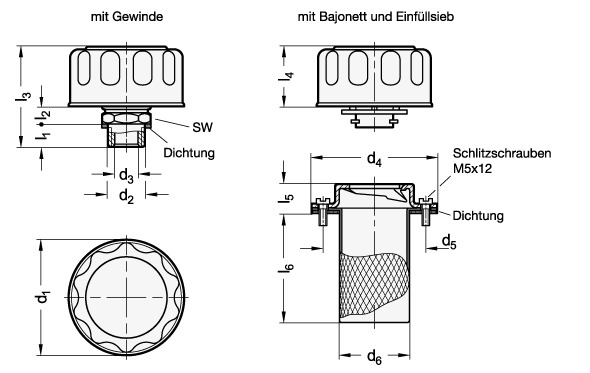

Function and operational criteria of breather caps GN 764 with double valve (Type FD) see description of function. For the version with bayonet and filler strainer 6 slot head screws M5 x 10 are part of the order.
Attributes
Form
F - with filter
Image variant
G - Thread
L1
10
L2
5
Material
ST - Steel
Outer diameter d1
47
RoHS
Ja
SW
17
Screw thread d2
G 1/4
Weight
0.057 kg
d3
7
d4
52
d5
40
d6
27
l3
51
l4
35
l5
13
l5 ≈
13
l6
66
