Reference flange with friction ring
GN 723.3-33,5-B6-A for rotary knobs GN 723.4AL - Aluminium
Item-no.: 1212148Supplier number: 723.3-33,5-B6-AEAN: 4045525361751
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Reference flanges GN 723.3 are used together with control knobs GN 723.4 which offer the following advantages: - they have a reference mark to line up with the control knob scale, - they offer additional support for the control shaft, - the version with friction ring prevents an unexpected movement of the control knob by vibration.

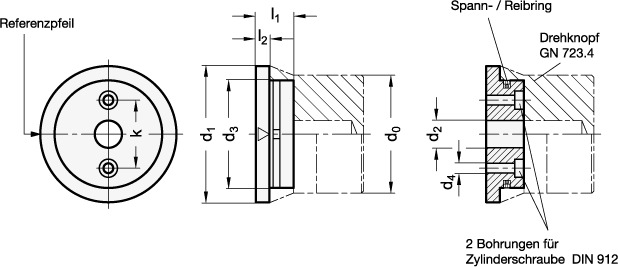

Attributes
Borehole d2
B 6
Form
A - with friction ring
L1
11.2
L2
4
Material
AL - Aluminium
Outer diameter d1
33.5
RoHS
Ja
Weight
0.015 kg
d0Drehknopf Ø GN 723.4
27
d3
23.3
d4
3.4
k
13
