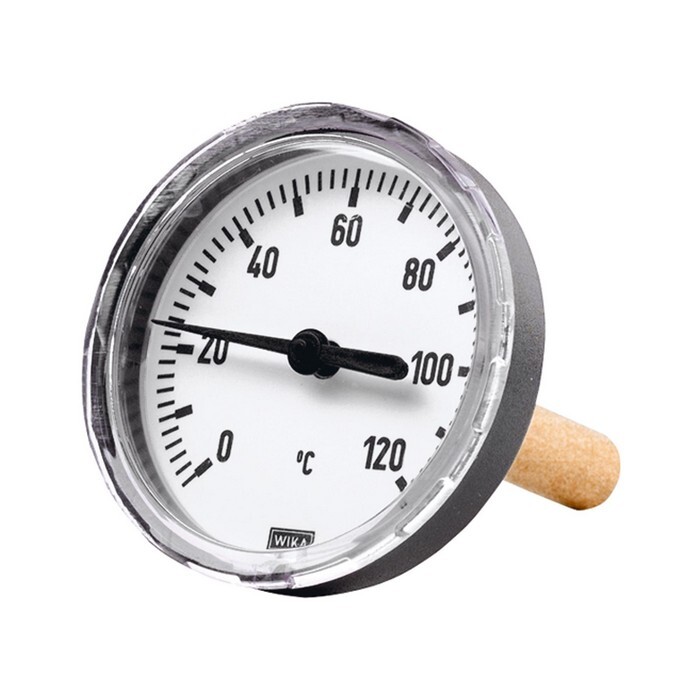

Thermometer bimetal, heating technology
0-120°C, AG 1/2", D 63 mm, shaft 100 mm AN rear, max 6 bar, Kl 2.0, plasticItem-no.: 1238437Supplier number: 4606customs tariff number: 90251900EAN: 4047322091503
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
Bi-metallic thermometer for heating, Connection rear, G 1/2, Immersion shaft length 100 mm, Ø 63 mm, Display range 0 °C to 120 °C. Applications: Heating, plumbing, universal.
Attributes
Connection position
back
Diameter
63 mm
Display correction
at the end of the immersion shaft (Ø 9 mm)
Display range max.
120 °C
Display range min.
0 °C
Housing
Plastic
Immersion shaft length
100 mm
Operating pressure
max. 6 bar (at the thermowell)
Protective tube
clamped on (removable), copper alloy
Riegler article number
102764
Scale graduation in the bar range
2 bar
Screw thread
G 1/2 AG
Type
46
Viewing window
Acrylic glass
