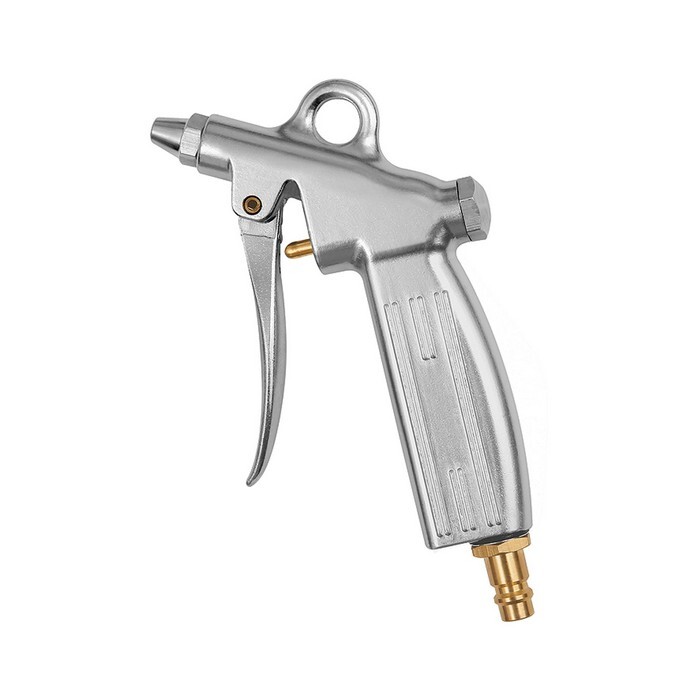

Blow gun aluminium, adjustable
DN 7.2, PN max.10 bar, bore 2 mm -10 °C to 50 °CItem-no.: 1469747Supplier number: DBPN72EAN: 4047322697934
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Metered air gun, standard nozzle hole 1.5 mm, nickel-plated die-cast aluminium, Temp. -10°C to 50°C PN max. 10bar, nipple I.D. 7.2. The blowing power is steplessly adjusted by the lever action and can be increased up to the maximum level. The blowing force can thus be individually controlled to cover a wide range of applications.
Attributes
Connection type
Connection nipple for couplings NW 7.2
Material
Nickel-plated die-cast aluminium
Max. operating pressure
10 bar
Nozzle
M12x1,25
Nozzle type
Standard nozzle, bore 1.5 mm
Operating pressure
10 bar
Temperature range
-10 to 50 °C
Temperature range max.
50 °C
Temperature range min.
-10 °C
Working pressure
2-6 bar
Working pressure max.
6 bar
Working pressure min.
2 bar
