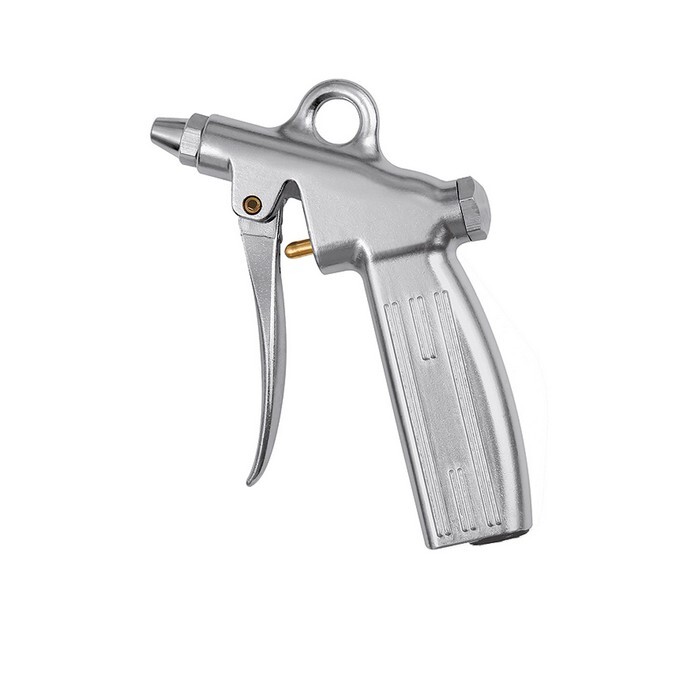

Blow gun aluminium, adjustable
IG 3/4", max. 10 bar -10 °C to 50 °CItem-no.: 1529499Supplier number: DBPG14customs tariff number: 84818079EAN: 4047322688789
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Metered air gun, standard nozzle hole 1.5 mm, nickel-plated die-cast aluminium, Temp. -10 °C to 50 °C, PN max. 10 bar, G 1/4 IT. The blowing power is steplessly adjusted by the lever action and can be increased up to the maximum level. The blowing force can thus be individually controlled to cover a wide range of applications.
Attributes
Connection type
G 1/4 inside
Material
Nickel-plated die-cast aluminium
Max. operating pressure
10 bar
Nozzle
M12x1,25
Nozzle type
Standard nozzle, bore 1.5 mm
Operating pressure
10 bar
Temperature range
-10 to 50 °C
Temperature range max.
50 °C
Temperature range min.
-10 °C
Working pressure
2-6 bar
Working pressure max.
6 bar
Working pressure min.
2 bar
