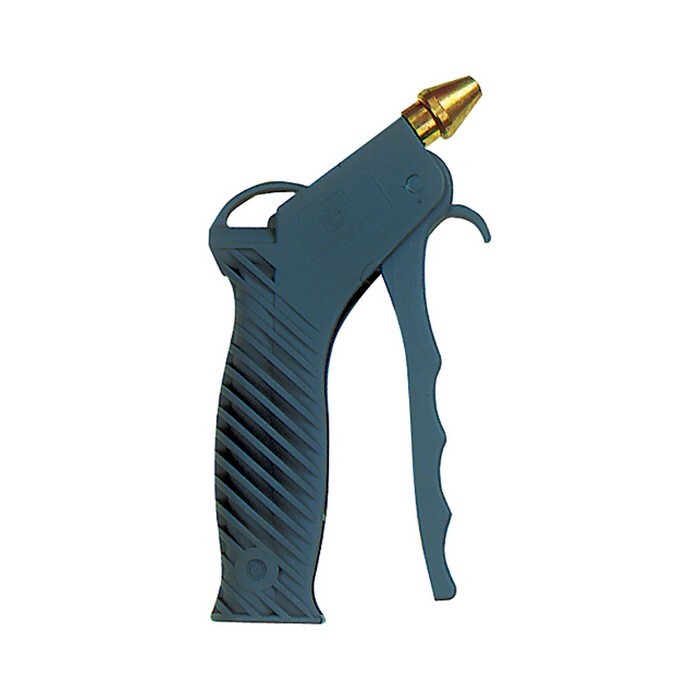

Plastic blow gun
1-6 bar, connection IG 1/4" max 10 bar, with safety nozzleItem-no.: 1122345Supplier number: 24 Dcustoms tariff number: 84818079EAN: 4047322056465
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Air gun with safety nozzle, Plastic, Temperature range -20 °C to 50 °C, PN max. 10 bar, G 1/4 IT. For blowing out and cleaning machines, engines, bearings, sliding surfaces, bores of all kinds, hollow parts, moulds, etc. The safety nozzle has a centre bore and an annular gap at the side. A protective shield is formed against rebounding chips during blowing. The noise level is also significantly reduced. If the nozzle bore is closed, the air escapes through the annular gap.
Attributes
Connection type
G 1/4 IG
Material
Plastic
Max. operating pressure
10 bar
Riegler article number
114377
Temperature range max.
50 °C
Temperature range min.
-20 °C
Working pressure max.
6 bar
Working pressure min.
1 bar
