Sheet metal hinge
GN 136-ST-30-30-BST - Steel
Item-no.: 1343649Supplier number: 136-ST-30-30-BEAN: 4045525065529
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 29 variants:
Price and stock visible after login
Description
Sheet metal hinges GN 136 are available in many different versions and are suitable for light to medium-duty applications.

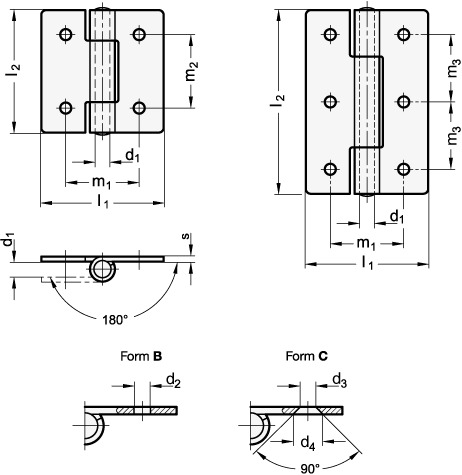

Attributes
Form
B - with through holes
Length (battery)
l2 (q) - square
Length l2
30
Length l21
30
Length l22
45
Material
ST - Steel
RoHS
Ja
Weight
0.014 kg
Width l1
30
d1
3
d2
3.2
m1
18
m2
18
s
1.5
