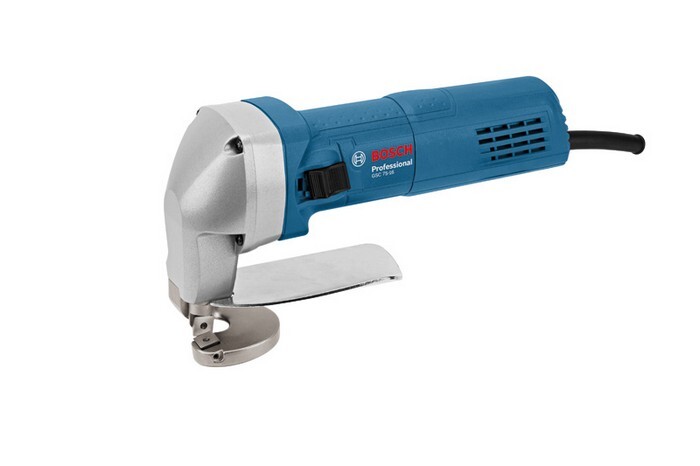

Sheet metal shears GSC 75-16
750 W 230 V Bosch 0.601.500.500Item-no.: 1439455Supplier number: 0601500500EAN: 3165140843034
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Shear GSC 75-16, The GSC 75-16 Professional is Bosch´s powerful corded shear, ideal for a wide range of applications in the 750 W category. Its strong 750 W motor enables cutting various materials. Perfect handling is ensured by its narrow grip circumference. The design of the shear head offers excellent manoeuvrability in curves. This shear is intended for cutting metal. Hex key WAF 3 (spare part number 1 907 950 004), 1 x upper and lower blade for metal shear (2 608 635 243)
Attributes
Cutting capacity aluminium (200 N/mm²), max.
2.2 mm
Cutting capacity steel (400 N/mm²), max.
1.6 mm
Cutting capacity steel (600 N/mm²), max.
1.2 mm
Cutting capacity steel (800 N/mm²), max.
0.7 mm
Idle stroke rate
5200 min-1
Machinable material
Steel up to 400 N/mm² at 1.6 mm
Measurement uncertainty k (cutting sheet metal)
1.5 m/s²
Nominal input power
750 W
Number of strokes, load
4000 min-1
Output power
400 W
Schwingungsemissionswert ah
6,0 m/s²
Smallest radius
35 mm
Unsicherheit K
1,5 m/s²
Vibration emission value ah [cutting sheet metal]
6.0 m/s²
Voltage
230 V
Weight
1.7 kg
