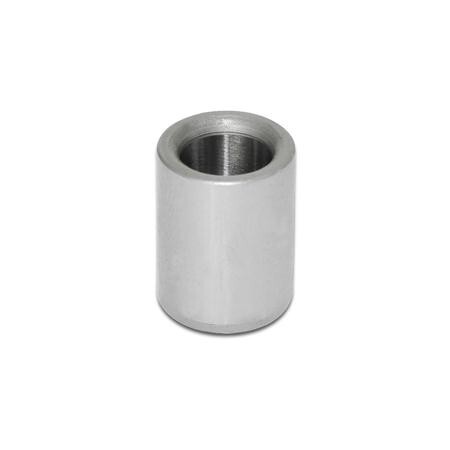

Drill bush DIN 179 A
29,5x42x45 mm medium, 1.0718 carbonitrided, HRC 62±2ST - Steel
Item-no.: 1402608Supplier number: 179-B29,5-45-Acustoms tariff number: 73182900EAN: 4045525506725
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 551 variants:
Price and stock visible after login
Description
Guide bushings DIN 179 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications. Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended. For guide applications, combination with the guide pins GN 771.1 is recommended.
Attributes
... ,5
B 29,5
Diameter d
B 29,5
Form
A - Hole rounded on one side
L2
5
Length l1
45
Material
ST - Steel
RoHS
Ja
Weight
0.241 kg
d11 ... ,0
B 29
d2
42
d3
46
