Ganter

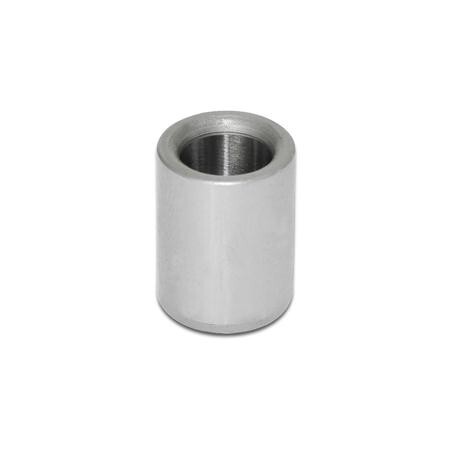

Drill bush DIN 179 A

6,4x12x20 mm long, 1.0718 carbonitrided, HRC 62±2
ST - Steel
Item-no.: 1402685EAN: 4045525508187
PU (Packaging): 10 PieceQuantity: ​​ 1 PiecePackable​
Item available in 550 variants:
Short-term Sourcing
Description
Guide bushings DIN 179 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications. Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended. For guide applications, combination with the guide pins GN 771.1 is recommended.
Attributes
... ,1
B 6,1
... ,2
B 6,2
... ,3
B 6,3
... ,4
B 6,4
... ,5
B 6,5
... ,6
B 6,6
... ,7
B 6,7
... ,8
B 6,8
... ,9
B 6,9
Diameter d
B 6,4
Form
A - Hole rounded on one side
Length l1
20
Material
ST - Steel
RoHS
Ja
Weight
0.012 kg
d2
12
