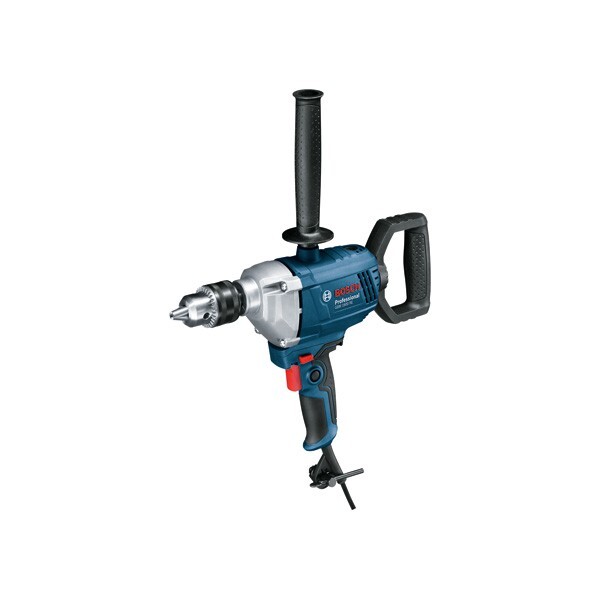

Drilling machine GBM 1600 RE
in box Bosch 0.601.1B0.000Item-no.: 1439399Supplier number: 06011B0000customs tariff number: 84672199EAN: 3165140836326
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Drill GBM 1600 RE, The GBM 1600 RE Professional is a versatile 1-geared corded rotary drill designed for stirring and drilling applications. It has a strong 850 W motor that enables high work efficiency. It features an auxiliary handle and a 360° rotatable D-handle for easy tool handling in versatile applications. This rotary drill also delivers a high torque as well as an excellent drilling performance in heavy-duty jobs. This tool is intended for drilling in metal and wood and for stirring liquids. It is compatible with various stirring baskets up to 160 mm in diameter. The GBM 1600 RE Professional also features right-left rotation. Auxiliary handle, Chuck key (1 607 950 041), Keyed chuck 16 mm
Attributes
Drill chuck clamping range, min./max.
3 – 16 mm
Drill-Ø steel
16 mm
Drill-Ø wood
40 mm
Idle speed, 1st gear
0 – 630 min-1
Idle speed, 1st gear, from
0 U/min
Idle speed, 1st gear, to
630 U/min
Nominal input power
850 W
Nominal torque
11.0 Nm
Nominal torque, 1st gear
11.0 Nm
Packaging dimensions (width x length x height)
301 x 405 x 113 mm
Tool dimensions (length)
370 mm
Weight
3 kg
Werkzeugabmessungen (Breite)
86 mm
Werkzeugabmessungen (Höhe)
540 mm
