Bolt
FBN II 12/50 (12X146) fischerItem-no.: 1059123Supplier number: 045264EAN: 4006209452646
PU (PU NW): 20 PiecePU (Packaging): 20 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description

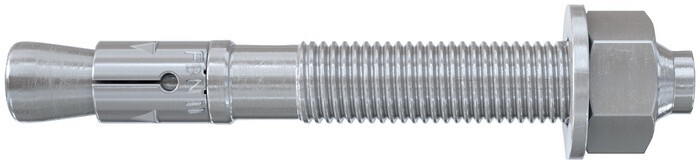

article 88582 steel FBN II zinc plated FISCHER bolt anchor FBN II with expanding cone, nut and washer - dimension: FBN II 12/ 50 PU=S (20 pieces)
Attributes
Anchor depth
65 mm
Anchor length
144 mm
Attachement
Expanding anchor
Drill nominal diameter
12 mm
Drive
Hexagon
ETA approval
Ja
Fastening device
Mother
Head embossing
S
Installation torque
50 Nm
Material
Galvanised steel
Max. thickness of the add-on part
50 mm
Number of discs
1
Number of nuts
1
Pre-assembly
Ja
Push-through mounting
Ja
Screw thread
M12 x 99 mm
Surface protection
Galvanised/electrolytically galvanised
Thread dimension (mm)
12 mm
Thread type
metric
U-disc (outer diameter x thickness)
18 x 2 mm
VDS approval
Ja
Wrench width
19 mm
