Bolt
FBN II 6/5 ( 6x12) gvz. fischerItem-no.: 1059248Supplier number: 505526EAN: 4048962070231
PU (PU NW): 100 PiecePU (Packaging): 100 PieceQuantity:
100 PiecePackable
Price and stock visible after login
Description

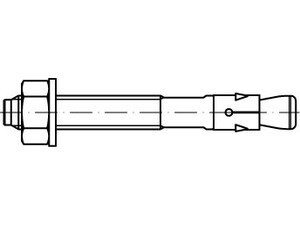

article 88582 steel FBN II zinc plated FISCHER bolt anchor FBN II with expanding cone, nut and washer - dimension: FBN II 6/ 5 PU=S (100 pieces)
Attributes
Anchor depth
30 mm
Anchor length
50 mm
Attachement
Expanding anchor
Ausführung (etim)
External thread
Distance mounting
No
Drill nominal diameter
6 mm
Drive
Hexagon
ETA approval
Ja
Fastening device
Mother
Fastening with spreading tool
No
Geeignet für gerissenen Beton
Ja
Geeignet für ungerissenen Beton
Ja
Head embossing
A
Installation torque
7,5 Nm
Material
Galvanised steel
Max. Nutzlänge hef,stand./hef,min.
5 / - mm
Max. thickness of the add-on part
5 mm
Min. drill hole depth for push-through installation
45 mm
Number of discs
1
Number of nuts
1
Pre-assembly
Ja
Professional / DIY
Professional
Push-through mounting
Ja
Screw thread
M6 x 12 mm
Surface protection
Galvanised/electrolytically galvanised
Test marks / approvals
ETA - Europäisch Technische Bewertung
Thread dimension (mm)
6 mm
Thread type
metric
U-disc (outer diameter x thickness)
12 x 1,6 mm
VDS approval
Ja
With collar
No
Wrench width
10 mm
