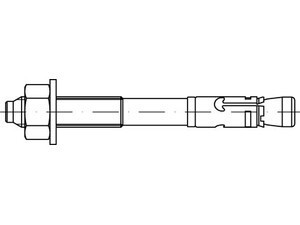

Bolt anchor option 1
MAX 10/10 R Stainless steel A4 Dowel length=95 mm, UpatA 4
Item-no.: 1059164EAN: 4000657002590
PU (PU NW): 50 PiecePU (Packaging): 50 PieceQuantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
article 88741 A 4 MAX UPAT express anchors MAX with expanding cones, nut and washer - dimension: MAX 10/ 10/ 95 PU=S (50 pieces)
Attributes
Anchor depth
60 mm
Anchor depth stand.
60 / 40 mm
Anchor length
95 mm
Anchor.red.
40 mm
Anchor.stand.
60 mm
Application
Outdoors and damp areas
Conditions of use
Outdoors and damp areas
Drill nominal diameter
10 mm
Durchmesser
10.00 mm
ETA approval
Ja
Fire protection
Ja
Fire resistance
R120
Form
MAX
Gewicht
6.060 KGM
Head embossing
B
Installation torque
45 Nm
Length (battery)
10.00 mm
Material
Stainless steel
Material
A 4
Max. effective length
10 mm
Max. usable length stand.
10 / 30 mm
Min. drill hole depth for push-through installation
85 mm
Normart
REYHER-Artikel
Normnummer
88741
Oberfläche
Ohne Oberflächenangabe
Plain washer
10,5 x 2 mm
Screw thread
M10 x 53 mm
Seismic approval
C1 / C2
Suitability distance mounting
No
Suitability for push-fit installation
Ja
Suitability for push-through installation
Ja
Thread dimension metric
10 mm
Thread length
53 mm
Useful L. stand.
10 mm
Useful. L. red.
30 mm
VDS approval
Ja
Wrench width
17 mm
