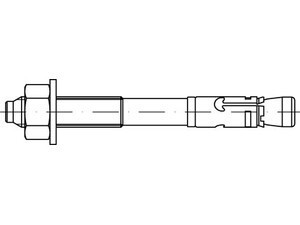

Bolt anchor option 1
MAX 12/30 Dowel length=130 mm, UpatStahl
Item-no.: 1059154EAN: 4000657000923
PU (PU NW): 20 PiecePU (Packaging): 20 PieceQuantity:
1 PiecePackable
Item available in 18 variants:
Price and stock visible after login
Description
article 88741 steel MAX zinc plated UPAT express anchors MAX with expanding cones, nut and washer - dimension: MAX 12/ 30/130 PU=S (20 pieces)
Attributes
Anchor depth
70 mm
Anchor depth stand.
70 / 50 mm
Anchor length
130 mm
Anchor.red.
50 mm
Anchor.stand.
70 mm
Application
Dry area
Conditions of use
Dry area
Drill nominal diameter
12 mm
Durchmesser
12.00 mm
ETA approval
Ja
Fire protection
Ja
Fire resistance
R120
Form
MAX
Gewicht
11.675 KGM
Head embossing
F
Installation torque
60 Nm
Length (battery)
30.00 mm
Material
Stahl
Material
Galvanised steel
Max. effective length
30 mm
Max. usable length stand.
30 / 50 mm
Min. drill hole depth for push-through installation
120 mm
Normart
REYHER-Artikel
Normnummer
88741
Oberfläche
galvanisch verzinkt
Plain washer
12,5 x 2,5 mm
Screw thread
M12 x 81 mm
Seismic approval
C1 / C2
Suitability distance mounting
No
Suitability for push-fit installation
Ja
Suitability for push-through installation
Ja
Thread dimension metric
12 mm
Thread length
81 mm
Useful L. stand.
30 mm
Useful. L. red.
50 mm
VDS approval
Ja
Wrench width
19 mm
