Bolt anchor option 7
IMC 08/10 Dowel length=71 mm, UpatStahl
Steel
Item-no.: 1059177customs tariff number: 73182900EAN: 4000657003658
PU (Packaging): 100 PieceQuantity:
100 PiecePackable
Item available in 18 variants:
Price and stock visible after login
Description

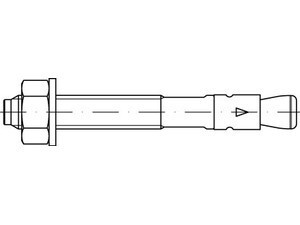

article 88764 steel IMC zinc plated UPAT express anchors IMC with expanding cone, nut and washer - dimension: 8/ 10/ 70 PU=S (100 pieces)
Attributes
Anchor depth stand.
40 / 30 mm
Anchor length
70 mm
Anchor.red.
30 mm
Anchor.stand.
40 mm
Application
Dry area
Conditions of use
Dry area
Diameter
8.00 mm
Drill nominal diameter
8 mm
ETA approval
Ja
Form
IMC
Head embossing
B
Installation torque
15 Nm
Length (battery)
71.00 mm
Material
Steel
Material
Galvanised steel
Max. usable length stand.
10 / 20 mm
Min. drill hole depth for push-through installation
66 mm
Plain washer
16 x 1,6 mm
Screw thread
M8 x 39 mm
Standard number
88764
Suitability distance mounting
No
Suitability for push-fit installation
Ja
Suitability for push-through installation
Ja
Surface
Galvanised
Thread dimension metric
8 mm
Thread length
39 mm
Useful L. stand.
10 mm
Useful. L. red.
20 mm
VDS approval
Ja
Weight
2.920 KGM
Wrench width
13 mm
