Bow handle
GN 425-NI-10-120-GS Blasted stainless steelNI - Stainless steel
Item-no.: 1075713Supplier number: 425-NI-10-120-GSEAN: 4045525247543
Quantity:
1 PiecePackable
Item available in 58 variants:
Price and stock visible after login
Description

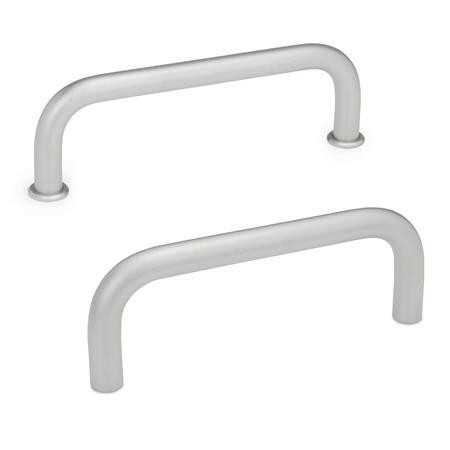

Cabinet U-handles GN 425 are manufactured from a bent stainless steel profile. Cabinet U-handles with Ø d1 = 6, 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed. The stainless steel version is preferred over the chrome-plated version in steel for outdoor applications.
Attributes
Handle diameter d1 (NI)
10
Length l
120
Material
NI - Stainless steel
R
12
RoHS
Ja
Screw thread
M 5
Surface
GS - matt blasted
Weight
0.109 kg
d3
15
h
43
tmin.
12
