Bow handle
GN 425-NI-12-200-EP Electropolished stainless steelNI - Edelstahl
Item-no.: 1201839Supplier number: 425-NI-12-200-EPcustoms tariff number: 83024900EAN: 4045525812932
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description

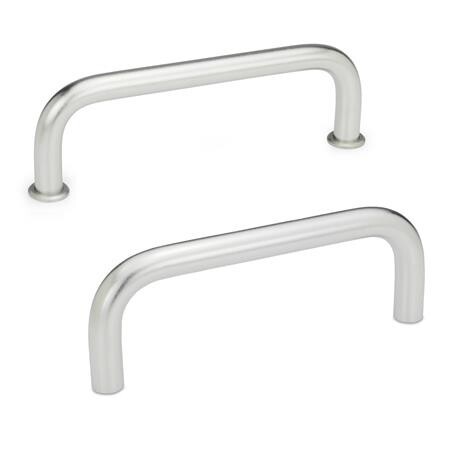

Cabinet U-handles GN 425 are manufactured from a bent stainless steel profile. Cabinet U-handles with Ø d1 = 6, 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed. The stainless steel version is preferred over the chrome-plated version in steel for outdoor applications.
Attributes
Handle diameter d1 (NI)
12
Length l
200
Material
NI - Stainless steel
R
14
RoHS
Ja
Screw thread
M 6
Surface
EP - electropolished
Weight
0.231 kg
h
51
t min.
12
tmin.
12
