Rear mounting bow handle
GN 728-120-A-SW Die-cast aluminium black RAL 9005AL - Die-cast aluminium
Item-no.: 1212279Supplier number: 728-120-A-SWEAN: 4045525363946
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
The installation of cabinet U-handles GN 728 can be carried out from the back (type A) as well as from the operator’s side (type B).

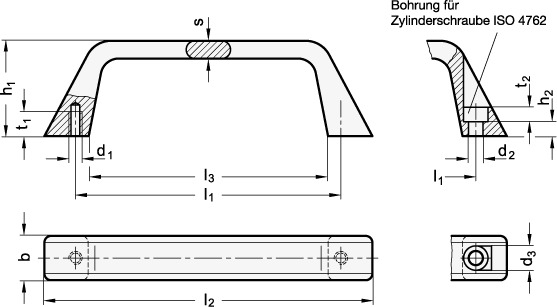

Attributes
Form
A - Mounting from the rear (threaded blind hole)
L2
147
Length l1
120
Material
AL - Die-cast aluminium
RoHS
Ja
Screw thread
M 6
Surface
SW - black, RAL 9005, textured matt
Weight
0.090 kg
b
22.5
h1
42.5
l3
108
s
8
t1min.
10
