Bow handle, electric switching function
GN 628.4-132-SL Elesa 260551-C1Item-no.: 1208728Supplier number: 628.4-132-SLEAN: 4045525613546
Quantity:
1 PiecePackable
Item available in 9 variants:
Price and stock visible after login
Description

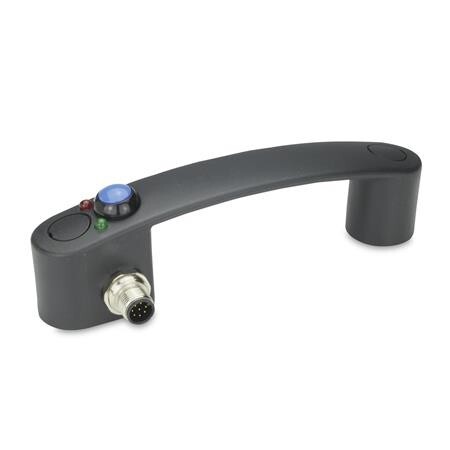

Cabinet U-handles GN 628.4 feature a button and two LEDs. The button is fitted with a break or make contact or two break contacts and triggers an electrical control signal, such as for a machine control. The two integrated LEDs in red and green can serve as a status indicator for a controller, for example. The cover caps are supplied loose. Complementary cabinet U-handles without switching function are available as GN 628.
Attributes
Form
SL - plug on the side, left
L2
160
Length l1
132
RoHS
Ja
Weight
0.085 kg
d1
28
d2
8.5
h1
44
h2
20
l3
89
s
8.5
