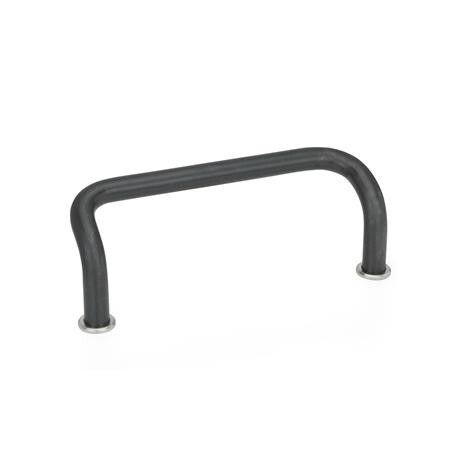

Angled bow handle
GN 425.1-10-200-BT burnishedST - Steel
Item-no.: 1349383Supplier number: 425.1-10-200-BTcustoms tariff number: 83024900EAN: 4045525371538
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
Cabinet U-Handles GN 425.1 are manufactured from a bent steel profile. Cabinet U-handles with Ø d1 = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed. The stainless steel version is preferred over the chrome-plated version in steel for outdoor applications.
Attributes
Handle diameter d1
10
Length l
200
Material
ST - Steel
R
11
RoHS
Ja
Screw thread
M 5
Surface
BT - burnished
Weight
0.188 kg
d3
15
h1
47
h2
35
t min.
12
tmin.
12
