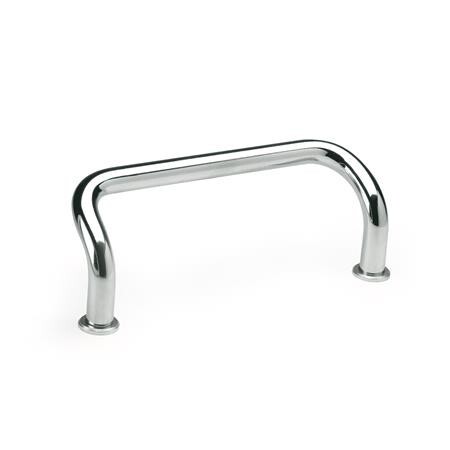

Angled bow handle
GN 425.1-8-55-CR chrome-platedST - Stahl
Item-no.: 1349407Supplier number: 425.1-8-55-CRcustoms tariff number: 83024900EAN: 4045525128804
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cabinet U-Handles GN 425.1 are manufactured from a bent steel profile. Cabinet U-handles with Ø d1 = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed. The stainless steel version is preferred over the chrome-plated version in steel for outdoor applications.

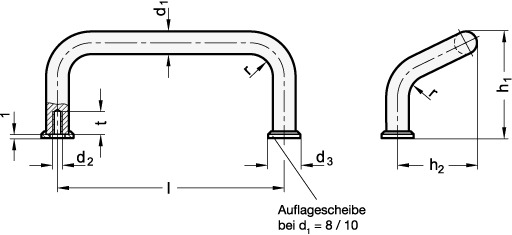

Attributes
Handle diameter d1
8
Length l
55
Material
ST - Steel
R
9
RoHS
Ja
Screw thread
M 4
Surface
CR - chrome-plated
Weight
0.057 kg
d3
12
h1
40
h2
30
t min.
8
tmin.
8
