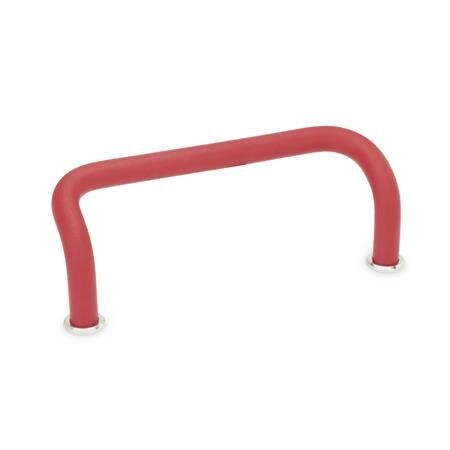

Angled bow handle
GN 425.1-AL-10-180-RS Aluminium coated redAL - Aluminium
Item-no.: 1349436Supplier number: 425.1-AL-10-180-RScustoms tariff number: 83024900EAN: 4045525423961
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cabinet U-handles GN 425.1 are manufactured from a bent aluminum profile. Cabinet U-handles with Ø d1 = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed.
Attributes
Handle diameter d1
10
Length l
180
Material
AL - Aluminium
R
11
RoHS
Ja
Screw thread
M 5
Surface
RS - red, RAL 3000, textured matt
Weight
0.065 kg
d3
15
h1
47
h2
35
t min.
12
tmin.
12
