Angled bow handle
GN 425.1-AL-10-88-EL Anodised aluminiumAL - Aluminium
Item-no.: 1349443Supplier number: 425.1-AL-10-88-ELcustoms tariff number: 83024900EAN: 4045525129047
Quantity:
1 PiecePackable
Price and stock visible after login
Description

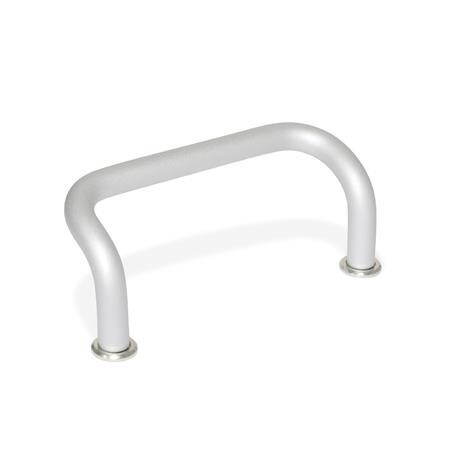

Cabinet U-handles GN 425.1 are manufactured from a bent aluminum profile. Cabinet U-handles with Ø d1 = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed.
Attributes
Handle diameter d1
10
Length l
88
Material
AL - Aluminium
R
11
RoHS
Ja
Screw thread
M 5
Surface
EL - anodised, natural colour
Weight
0.044 kg
d3
15
h1
47
h2
35
t min.
12
tmin.
12
