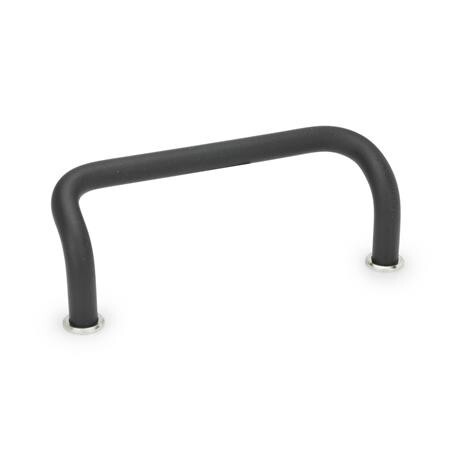

Angled bow handle
GN 425.1-AL-10-88-SW Black coated aluminiumAL - Aluminium
Item-no.: 1349446Supplier number: 425.1-AL-10-88-SWcustoms tariff number: 83024900EAN: 4045525229587
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cabinet U-handles GN 425.1 are manufactured from a bent aluminum profile. Cabinet U-handles with Ø d1 = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed.
Attributes
Handle diameter d1
10
Length l
88
Material
AL - Aluminium
R
11
RoHS
Ja
Screw thread
M 5
Surface
SW - black, RAL 9005, textured matt
Weight
0.044 kg
d3
15
h1
47
h2
35
t min.
12
tmin.
12
