Angled bow handle
GN 425.1-AL-12-160-SW Black coated aluminiumAL - Aluminium
Item-no.: 1349450Supplier number: 425.1-AL-12-160-SWcustoms tariff number: 83024900EAN: 4045525371347
Quantity:
1 PiecePackable
Price and stock visible after login
Description

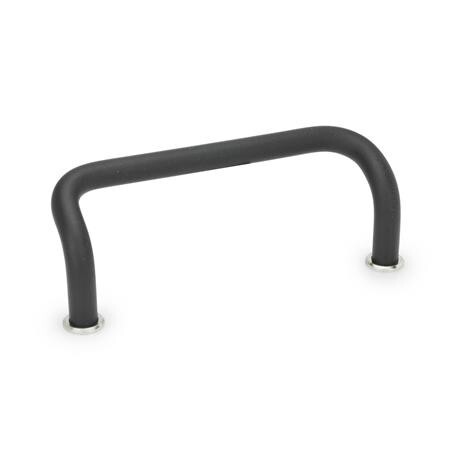

Cabinet U-handles GN 425.1 are manufactured from a bent aluminum profile. Cabinet U-handles with Ø d1 = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed.
Attributes
Handle diameter d1
12
Length l
160
Material
AL - Aluminium
R
12
RoHS
Ja
Screw thread
M 6
Surface
SW - black, RAL 9005, textured matt
Weight
0.089 kg
h1
60
h2
44
t min.
12
tmin.
12
