Ganter

Straight bow handle

GN 565.1-20-100-SW Aluminium black RAL 9005
AL - Aluminium
Item-no.: 1179358Supplier number: 565.1-20-100-SWEAN: 4045525544130
Quantity: ​​ 1 PiecePackable​
Item available in 59 variants:
Short-term Sourcing
Description
Cabinet U-handles GN 565.1 are manufactured from a bent aluminum profile and have excellent stability and ergonomic design. In addition to the standard surfaces, these cabinet U-handles are also available with a functional coating. The SW version is coated with a highly weather-resistant and UV-resistant powder coating system, making this version excellent for outdoor use.

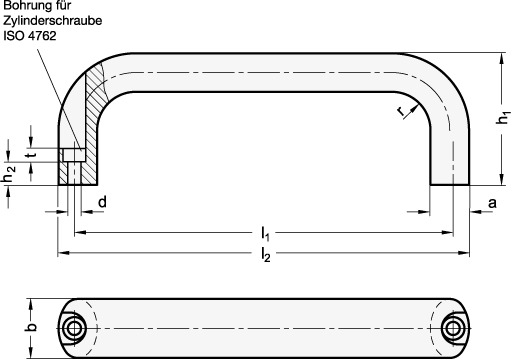

Attributes
A
13
Handle width b
20
L2
112
Length l1
100
Material
AL - Aluminium
R
13
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.076 kg
d
5.4
h1
49
h2
13.5
t
5.5
