Bow handle with cover capsSW
GN 628.3-117-B-DSG Elesa 260261-C1PP-TPE - Plastic
Item-no.: 1208717Supplier number: 628.3-117-B-DSGEAN: 4045525520868
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description

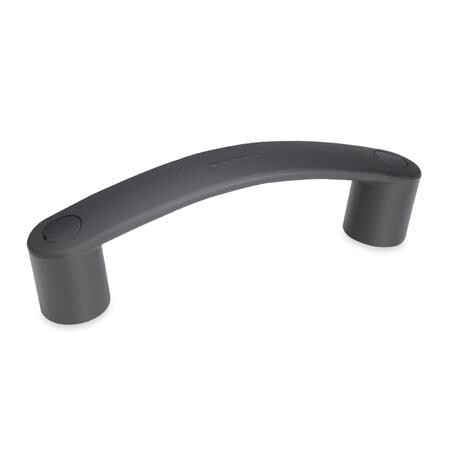

Cabinet U-handles GN 628.3 are manufactured out of a flexible plastic material. They were developed for easy assembly on arched surfaces. They cover the section from Ø 300 up to Ø 600. For Ø bigger than 600, the standard version GN 628 can be used. The design of the cabinet U-handles GN 628.3 matches the Ergostyle® product family. The cover caps are supplied loose.
Attributes
Farbe der Abdeckkappen
DSG - schwarzgrau, RAL 7021, matt
Form
B - Mounting from the operating side

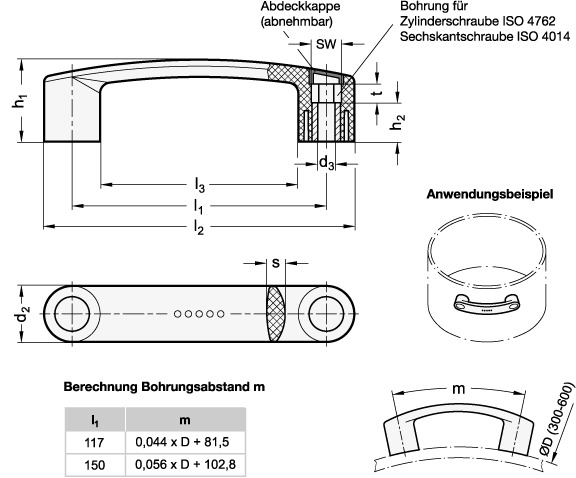

L2
143
Length l1
117
Material
PP-TPE - Plastic
RoHS
Ja
SW
13
Weight
0.057 kg
d2
26
d3
8.5
h1
39
h2
18
l3
91
s
9
t
8.5
