Bow handle with support discs
GN 425-10-120-BT Burnished steelST - Stahl
Item-no.: 1075711Supplier number: 425-10-120-BTcustoms tariff number: 83024900EAN: 4045525247512
Quantity:
1 PiecePackable
Price and stock visible after login
Description

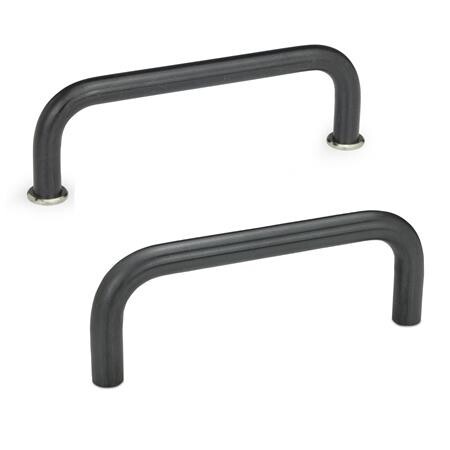

Cabinet U-handles GN 425 are manufactured from a bent steel profile. Cabinet U-handles with Ø d1 = 6, 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed. The stainless steel version is preferred over the chrome-plated version for outdoor applications.
Attributes
Handle diameter d1
10
Length l
120
Material
ST - Steel
R
12
RoHS
Ja
Screw thread
M 5
Surface
BT - burnished
Weight
0.111 kg
d3
15
h
43
t min.
12
tmin.
12
