Ganter

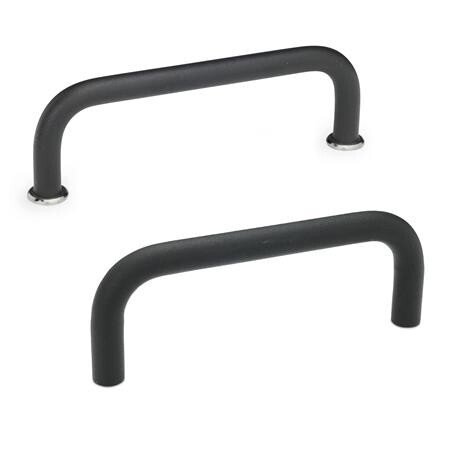

Bow handle with support discs

GN 425-8-120-SW Steel black RAL 9005
ST - Steel
Item-no.: 1201862Supplier number: 425-8-120-SWcustoms tariff number: 83024900EAN: 4045525248083

Quantity: ​​ 1 PiecePackable
Item available in 78 variants:
Short-term Sourcing

Description
Cabinet U-handles GN 425 are manufactured from a bent steel profile. Cabinet U-handles with Ø d1 = 6, 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed. The stainless steel version is preferred over the chrome-plated version for outdoor applications.
Attributes
Handle diameter d1
8
Length l
120
Material
ST - Steel
R
10
RoHS
Ja
Screw thread
M 4
Surface
SW - black, RAL 9005, textured matt
Weight
0.068 kg
d3
12
h
35
t min.
8
tmin.
8
