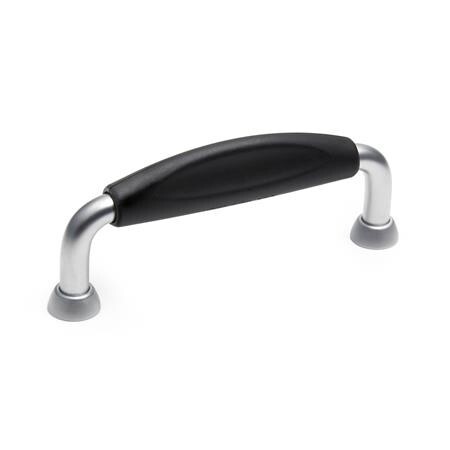

Bow handle with KU handle
GN 425.7-10-120 Elesa 41051Item-no.: 1201803Supplier number: 425.7-10-120EAN: 4045525598775
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description

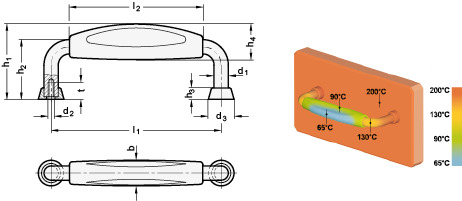

Cabinet U-handles GN 425.7 made of steel feature a plastic grip which, owing to its insulating properties, allows it to be used under high surface temperatures. The above temperature distribution curve has been measured at a surface temperature of 200 °C and a room temperature of 23 °C.
Attributes
Handle diameter d1
10
L2
94
Length l1
120
RoHS
Ja
Weight
0.133 kg
b
16
d2
M 5
d3
18
h1
53
h2
43
h3
8
h4
24
tmin.
12
