Angled bow handle
GN 565.7-20-112-A-MT stainless steelNI - Stainless steel
Item-no.: 1351056Supplier number: 565.7-20-112-A-MTEAN: 4045525066991
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Inclined stainless steel cabinet U-handles GN 565.7 are manufactured from a bent stainless steel profile. Their special features are their rigidity and ergonomical shaping. The angled contact surface allows improved access even in tight spaces such as corners.

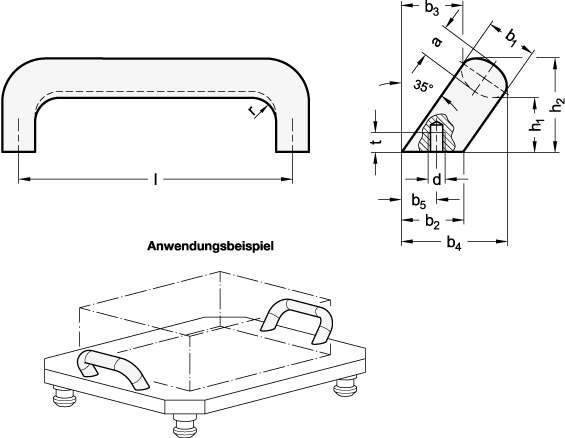

Attributes
A
13
Form
A - Mounting from the rear (threaded blind hole)
Handle width b1
20
Length l
112
Material
NI - Stainless steel
R
13
RoHS
Ja
Screw thread
M 6
Surface
MT - matt blasted
Weight
0.308 kg
b2
24
b3
32
b4
50
b5
13.5
h1
32
h2
48
tmin.
10
