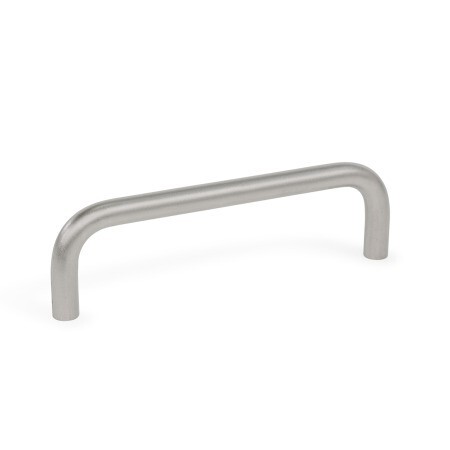

Weld-on bow handle
GN 425.3-16-125-NI Stainless steel matt blastedNI - Edelstahl
NI - Stainless steel
Item-no.: 1201748Supplier number: 425.3-16-125-NIcustoms tariff number: 83024900EAN: 4045525811096
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cabinet U-handles GN 425.3 are made of bent stainless steel sections and are affixed by welding. The holes d2 serve, if necessary, for inserting dowel pins or guide pins that provide a simple method for positioning and fixing the cabinet U-handle in place via the alignment holes in the opposing part for the welding process.
Attributes
Handle diameter d1
16
Length l
125
Material
NI - Stainless steel
R
18
RoHS
Ja
Weight
0.320 kg
d2
4
h
59
t
6
