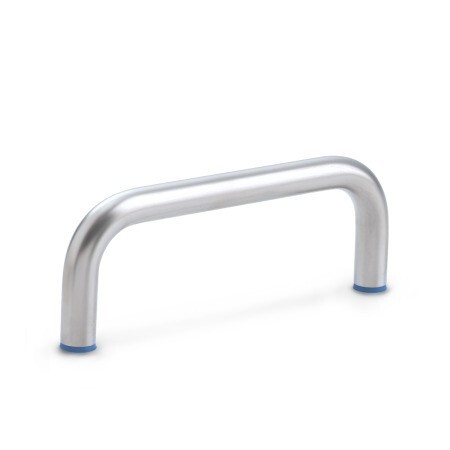

Bügelgriffe, FKM, Hygienic Design
429-A4-12-200-MT-F EdelstahlA4 - Edelstahl
A4 - Stainless steel
Item-no.: 1827607Supplier number: 429-A4-12-200-MT-Fcustoms tariff number: 83024900EAN: 4045525985728
Quantity:
1 PiecePackable
Price and stock visible after login

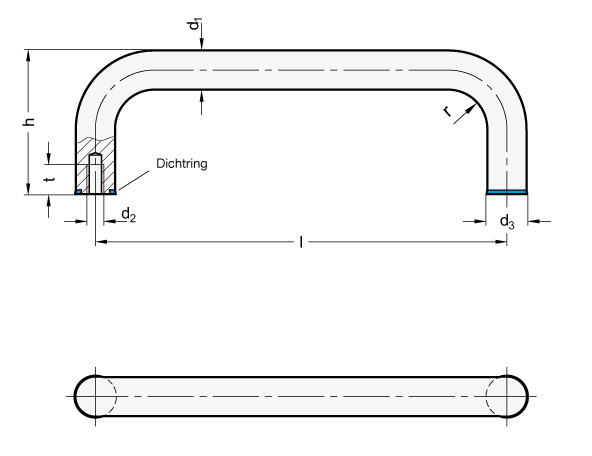

Attributes
Handle diameter d1
12
Length l
200
Material
A4 - Stainless steel
Material (sealing ring)
F - FKM
R
14
RoHS
Ja
Surface
MT - frosted (Ra < 0.8 µm)
Weight
0.240 kg
d2
M 5
d3
12.8
h
51
t min.
12
