Ganter

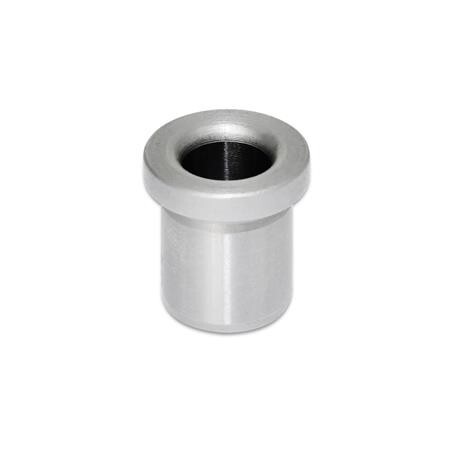

Flanged drill bush DIN 172 A

10.0x15/18x12 mm, collar thickness 3 mm short, 1.0718 carbonitrided, HRC 62±2
ST - Steel
Item-no.: 1323353EAN: 4045525593831

PU (Packaging): 10 PieceQuantity: ​​ 1 PiecePackable
Item available in 548 variants:
Short-term Sourcing

Description
Guide bushings DIN 172 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications. Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended. For guide applications, combination with the guide pins GN 771.1 is recommended.
Attributes
Diameter d
B 10
Form
A - Hole rounded on one side
L2
3
Length l1
12
Material
ST - Steel
RoHS
Ja
Weight
0.010 kg
d11 ... ,0
B 10
d2
15
d3
18
