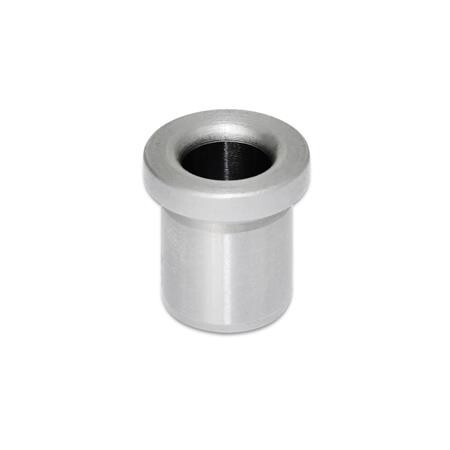

Flanged drill bush DIN 172 A
3.3x6/9x12 mm, collar thickness 2.5 mm medium, 1.0718 carbonitrided, HRC 62±2ST - Steel
Item-no.: 1290681EAN: 4045525593459
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 47 variants:
Price and stock visible after login
Description
Guide bushings DIN 172 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications. Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended. For guide applications, combination with the guide pins GN 771.1 is recommended.
Attributes
... ,1
B 3,1
... ,2
B 3,2
... ,3
B 3,3
Diameter d
B 3,3
Form
A - Hole rounded on one side
L2
2.5
Length l1
12
Material
ST - Steel
RoHS
Ja
Weight
0.002 kg
d11 ... ,0
B 3
d2
6
d3
9
