Description

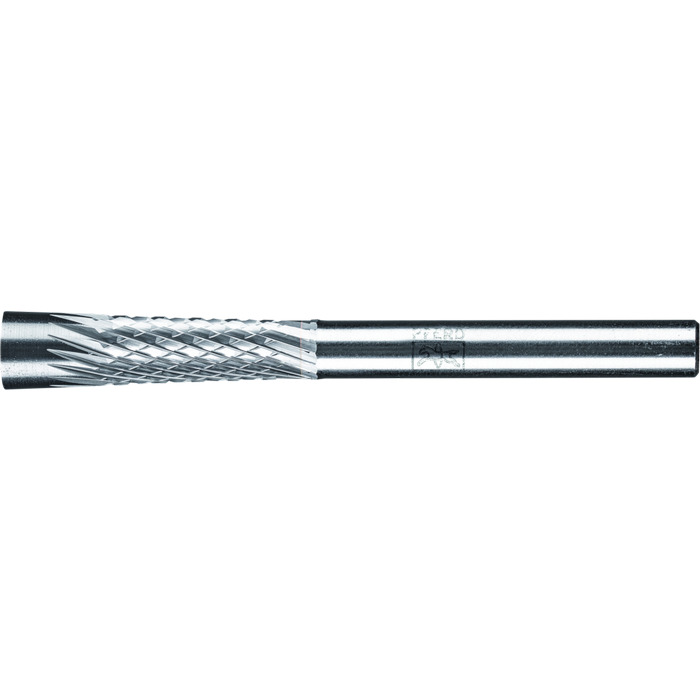

Tungsten carbide copy milling burrs by PFERD are the perfect tools for levelling elevations, such as weld seams. Thanks to the uncut area, the weld seam can be adjusted to the level of the surrounding surface without this being damaged. Copy milling burrs are used in particular in the repair of cutting and punching blades in tool and mould-making. Tungsten carbide copy milling burrs with cut 4 are designed for coarse stock removal. Inverted cone-shaped rotary cutter, tapered towards the shank. Inverted cones WKN are especially well-suited to processing punching tools that are used for processing aluminium.
Attributes
Angle
4 °
Length, body
7 mm
Length, toothed
26 mm
Length, total
73 mm
Neu im Jahr
2021
RPM from, hardened and tempered steels over 1,200 N/mm²
10000 RPM
RPM from, high-temperature resistant materials
10000 RPM
RPM from, stainless and acid-resistant steels
10000 RPM
RPM of, hard non-ferrous metals
10000 RPM
RPM up to, hard non-ferrous metals
14000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
14000 RPM
RPM up to, high-temperature resistant materials
18000 RPM
RPM up to, stainless and acid-resistant steels
18000 RPM
Toothing
4
Ø External metric
8 mm
Ø Shaft metric
6 mm
