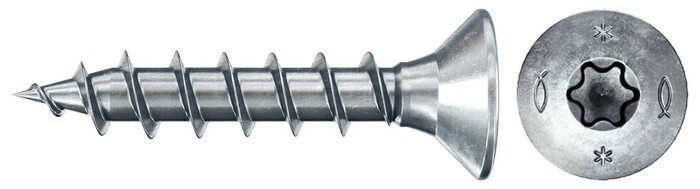

Chipboard screw
PowerFast II 3.0x20 SK TX VG blvz fischerStahl
Item-no.: 1676671Supplier number: 670005customs tariff number: 73181499EAN: 4048962368635
PU (Packaging): 1,000 PieceQuantity:
1,000 PiecePackable
Price and stock visible after login
Description
Advantages: Can be used flat and upright (four usable sides) - For flat and profiled surfaces due to flexible foam core - Robust, washable and reusable
Attributes
Art der Härtung
through-hardened
Bitgröße (nummerisch)
10
Coat
Galvanised blue passivated
Colour
Zinc
Combination thread
No
Core-Ø
1,95 mm
Countersink
90 °
Countersink head
Ja
Diameter
3 mm
Different material of the drill tip
No
Drive
TX10
ETA approval
Ja
Fixing thread
No
Gehärtet
Ja
Gewindeverteilung
Solid thread
Head bore
No
Head height
2,3 mm
Head shape
Countersunk head
Head Ø
6 mm
High-performance slide coating
Ja
Length (battery)
20 mm
Material
Hardened steel
Material
Stahl
Mit Pin im Schraubenschlitz
No
Processing in
Solid wood panels
Professional / DIY
Professional
Screw dimension
3,0 x 20 mm
Shaft diameter
2,25 mm
Spacer thread
No
Streifenmagazinverpackung
No
Surface treatment
Coated
Test marks / approvals
ETA - Europäisch Technische Bewertung
Thread length
16 mm
Thread type
coarse
Tip shape
pointed
Tip with milling ribs
No
Type
Chipboard screw
Unterkopffräsrippen
Ja
VDS approval
Ja
With disc and seal
No
With drill point
No
With fixed flange
No
With hole enlarging wings
No
