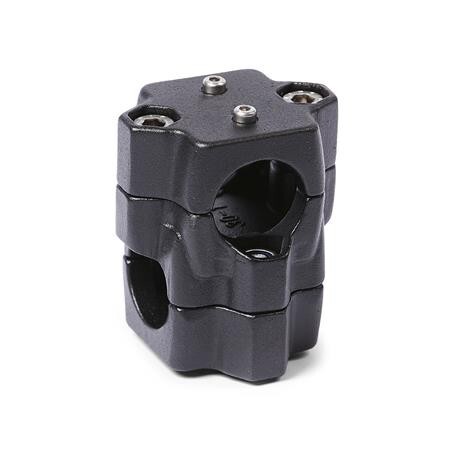

Cross-shaped square travelling carriage
GN 134.2-B30-V30-50-2-SAL - Aluminium
Item-no.: 1564929Supplier number: 134.2-B30-V30-50-2-SEAN: 4045525809161
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Two-way linear actuator connectors GN 134.2 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Centering bushings in the through-hole eliminate the axial clearance. The width of the s1 square is dimensionally aligned with the play of the square linear actuators. For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
Attributes
Borehole d1 - square s2
B30-V30
Clamping length
50
Code number
2 - with 4 stainless steel cylinder screws ISO 4762
L1
79.5
L2
68
Material
AL - Aluminium
Recommended accessories clamping lever GN 911 for zl3
63 | 78
RoHS
Ja
Surface
S - black, RAL 9005, textured matt
Weight
0.314 kg
d3 Befestigungsschraubeam Mitnehmer
M 4
m
33.5
z Bolting points
M8-30
