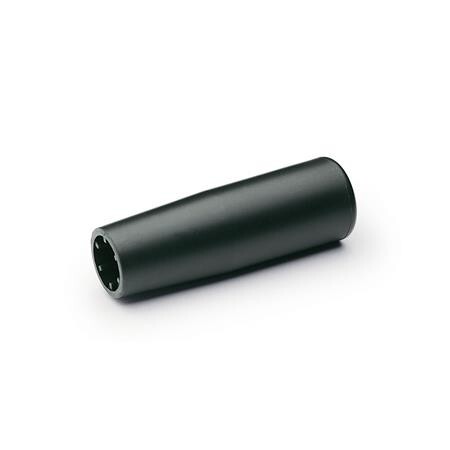

Cylinder knob for opening
GN 519.1-18-B8 Elesa 24821PP - plastic
Item-no.: 1075665Supplier number: 519.1-18-B8EAN: 4045525269118
PU (Packaging): 50 PieceQuantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
The cylindrical knobs GN 519.1 do not require a thread at the shaft. During mounting, easy blows with a soft hammer are sufficient to drive the knob into place, the shaft end should be slightly rounded or chamfered (30°). The knobs sit absolute vibration-tight.
Attributes
Borehole diameter d2
B 8
Handle diameter d1
18
L1
40
Material
PP - plastic
RoHS
Ja
Weight
0.007 kg
d3
15
l2 Min.
28
l2min.
28
