Double threaded nipple con. R 1 1/4 a. R
1/2 a. SW 44 MS vern.Item-no.: 1373350Supplier number: MSN252R11412EAN: 4047322489478
Quantity:
1 PiecePackable
Item available in 29 variants:
Price and stock visible after login
Description
Double threaded nipple, R 1 1/4 o., R 1/2 o., AF 44, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150°C. Suitable for air, water, oil, steam, etc.
Attributes

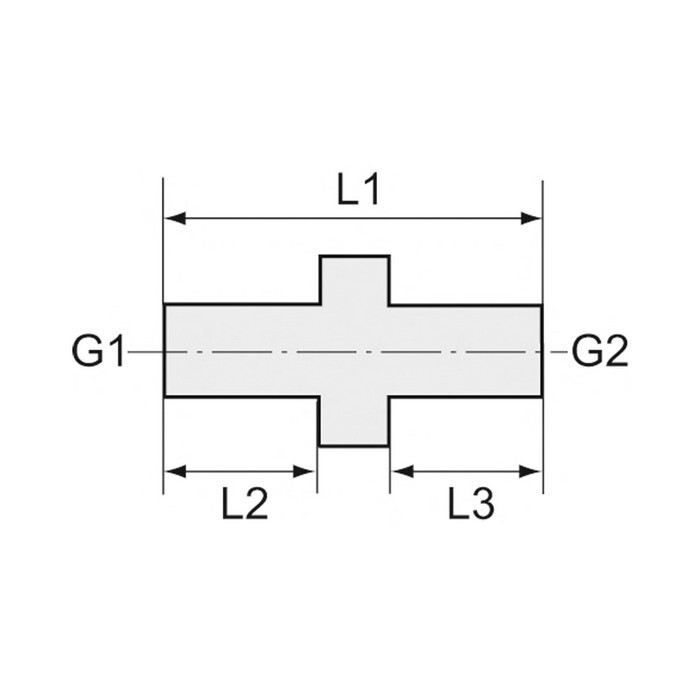

L1
41 mm
L2
20 mm
Material
Nickel-plated brass CW614N (galvanised nickel-plated)
Operating temperature max.
150 °C
Riegler article number
134801
SW
44 mm
Screw thread 1
R 1 1/4
Screw thread 2
R 1/2
Working pressure max.
25 bar
l3
14 mm
