Double threaded nipple con. R 1/2 a. R
1/2 a. SW 22 MS vern.Item-no.: 1373342Supplier number: MSN252R1212EAN: 4047322489386
Quantity:
1 PiecePackable
Item available in 29 variants:
Price and stock visible after login
Description
Double threaded nipple, R 1/2 o., R 1/2 o., AF 22, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C. Suitable for air, water, oil, steam, etc.
Attributes

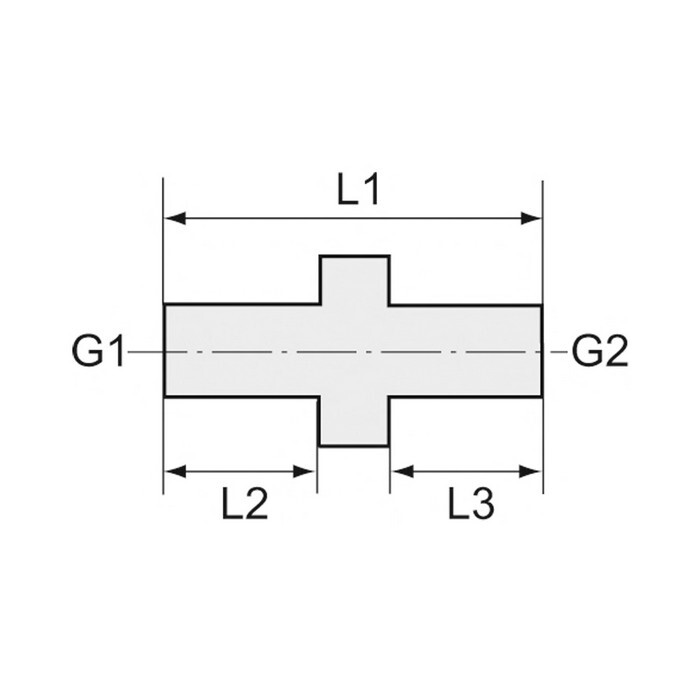

L1
34 mm
L2
14 mm
Material
Nickel-plated brass CW614N (galvanised nickel-plated)
Operating temperature max.
150 °C
Riegler article number
134792
SW
22 mm
Screw thread 1
R 1/2
Screw thread 2
R 1/2
Working pressure max.
25 bar
l3
14 mm
