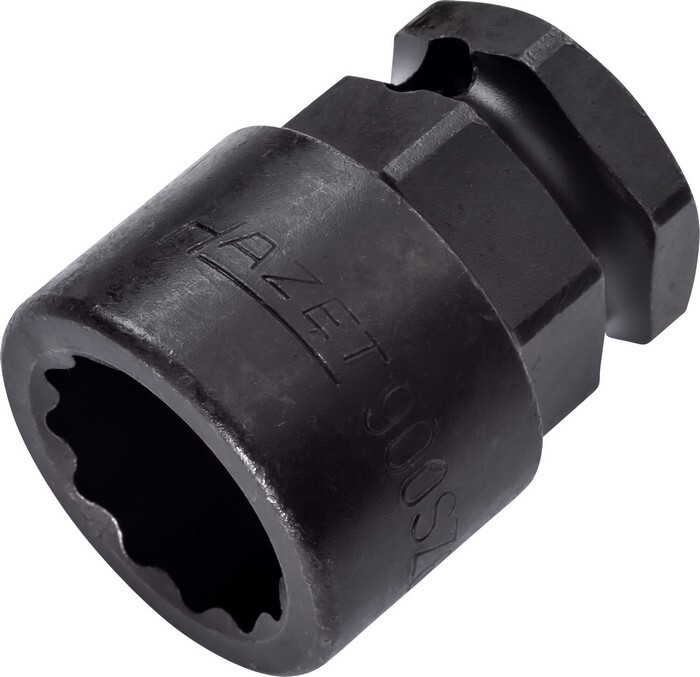

Double-force socket 6kt
Hazet 900SZ6-19Item-no.: 1668746Supplier number: 900SZ6-19customs tariff number: 82042000EAN: 4000896225293
Quantity:
1 PiecePackable
Item available in 9 variants:
Price and stock visible after login
Description
· Operation via impact adapter e.g. HAZET 1003S-1 or nut-drivers Wrench size 24 mm enables high force transmission thanks to optimal 3/4″ (20 mm) drive · Hexagon on the socket enables adaptation to 3⁄4″ (20 mm) drive · Short design · With borehole for locking pin or safety spring and groove for O-ring · Surface: phosphatized, oiled · Similar to DIN 3129, ISO 2725-2 · Made in Germany · Drive: 1/2 inch (12.5 mm) square, hollow, 24 mm outside hexagon · Output: Outside 12-point traction profile · Wrench size: 19 mm · Dimensions / length: 40 mm · Diameter d1 (output side): 30.5 mm · Diameter d2 (drive side): 27 mm · For impact operation.
Attributes
Construction length
Short version
Depth
11.6 mm

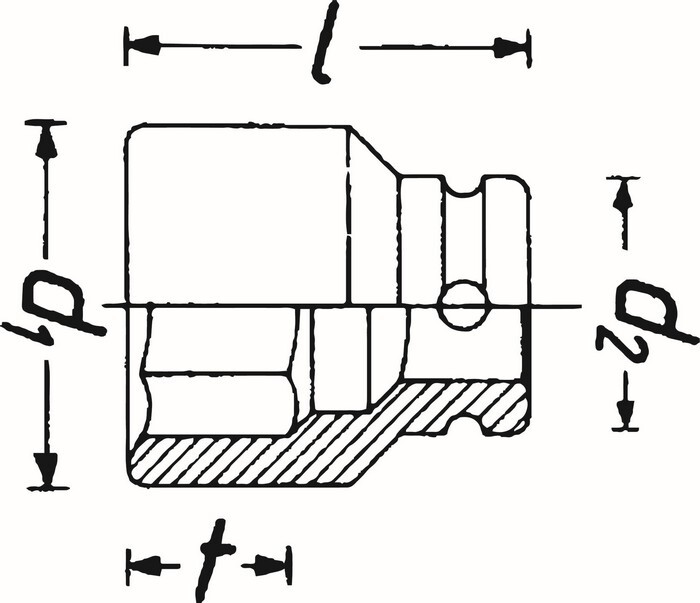

Diameter d1 (at output)
30.5 mm
Diameter d2 (on drive)
27 mm
Dimensions
40 mm
Drive
24 mm external hexagon
Length (battery)
40 mm
Manual/machine operation
For machine actuation
Material
Chrome-vanadium special steel
Norm
ISO 2725-2
Output
Exterior double hexagonal traction profile
Surface
phosphated, oiled
Version drive/output
With hole for locking pin or locking spring and groove for O-ring
Wrench width (s1)
19 mm
Wrench width s1xs2
19
