Item available in 37 variants:
Price and stock visible after login

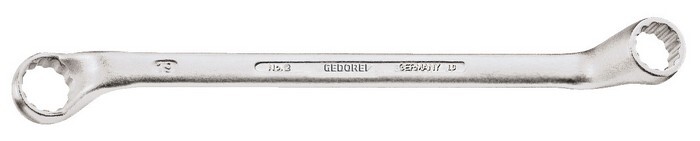

Description
Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104, Rings deep offset, strong but thin walls, Vanadium steel 31CrV3, chrome-plated, Satin non-glare finish, Carefully forged and professionally machined: Ring: thin-walled, 5° deep offset from shaft, with UD profile for gentle transmission of force, High bending strength - does not fracture or splinter when overloaded, thus minimising the risk of injury, Overloading indicated by deformation, For extremely deep or inset bolts, Top-grade industrial quality for the hardest of continuous use
Attributes
Gesamtbreite
14 mm
Gesamthöhe
25 mm
Gesamtlänge
190 mm
Kopfbreite 1
13,3 mm
Kopfbreite 2
14,4 mm
Kopfhöhe 1
6,6 mm
Kopfhöhe 2
7,6 mm
Kröpfhöhe 1
21,7 mm
Length (battery)
182 mm
Material
CV steel
Netto-Gewicht
0,065 kg
Norm
DIN 838 / ISO 3318 / ISO 1085 / ISO 10104
Oberfläche
verchromt
Ring-Profil
UNIT-DRIVE
Ringkröpfung
5 °
Schlüsselweite 1
8 mm
Schlüsselweite 2
9 mm
Version
deeply cranked
Wrench width
8 x 9 mm
