Rotary knob
GN 526-32-B6-DSWPA - plastic, polyamide
Item-no.: 1657487Supplier number: 526-32-B6-DSWEAN: 4045525886032
Quantity:
1 PiecePackable
Item available in 52 variants:
Price and stock visible after login
Description
Control knobs GN 526 have a colored cover that conceals protruding or recessed shafts and is suitable for imprinting characters or symbols, if desired. For assembly, the cover can be pressed on by hand. Disassembly is done by applying light pressure on the edge of the cover. The combination with scale rings GN 526.1 extends the application possibilities of the control knobs. The scale rings are fastened using the 3 bores on the pitch circle d8.

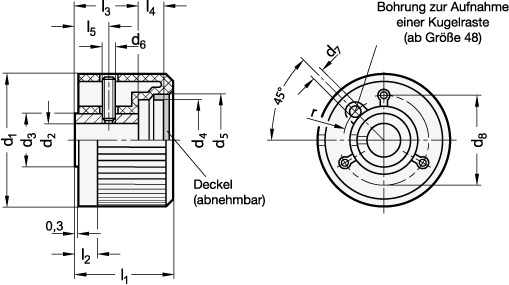

Attributes
Borehole d2
B 6
Farbe Deckel
DSW - schwarz, RAL 9005, matt
L1
26.5
L2
5
Material
PA - plastic, polyamide
Outer diameter d1
32
Outer diameter x1
32
RoHS
Ja
Weight
0.031 kg
d3
15
d4
19.5
d5
21.5
d6
M 4
d8 Teilkreis Ø
19
l3
16
l4
6.5
l5
9
