Rotary knob
GN 526-42-B8-DRTPA - plastic, polyamide
Item-no.: 1657492Supplier number: 526-42-B8-DRTcustoms tariff number: 39269097EAN: 4045525886100
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Control knobs GN 526 have a colored cover that conceals protruding or recessed shafts and is suitable for imprinting characters or symbols, if desired. For assembly, the cover can be pressed on by hand. Disassembly is done by applying light pressure on the edge of the cover. The combination with scale rings GN 526.1 extends the application possibilities of the control knobs. The scale rings are fastened using the 3 bores on the pitch circle d8.

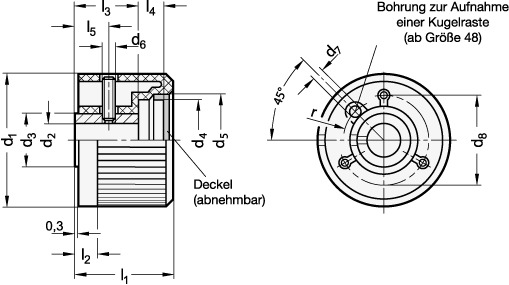

Attributes
Borehole d2
B 8
Farbe Deckel
DRT - red, RAL 3000, matt
L1
32
L2
7
Material
PA - plastic, polyamide
Outer diameter d1
42
Outer diameter x1
42
RoHS
Ja
Weight
0.050 kg
d3
18
d4
29.5
d5
31
d6
M 5
d8 Teilkreis Ø
28
l3
17.5
l4
11.5
l5
10.5
