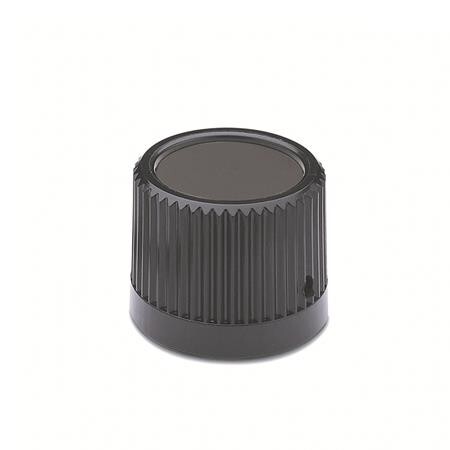

Rotary knob
GN 526-63-B14-DSWKT - Plastic
Item-no.: 1657530Supplier number: 526-63-B14-DSWEAN: 4045525885929
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Control knobs GN 526 have a colored cover that conceals protruding or recessed shafts and is suitable for imprinting characters or symbols, if desired. For assembly, the cover can be pressed on by hand. Disassembly is done by applying light pressure on the edge of the cover. The combination with scale rings GN 526.1 extends the application possibilities of the control knobs. The scale rings are fastened using the 3 bores on the pitch circle d8.

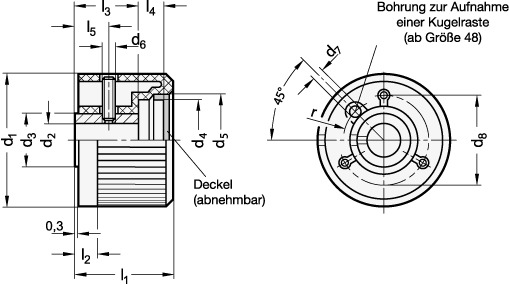

Attributes
Borehole d2
B 14
Farbe Deckel
DSW - black, RAL 9005, matt
L1
44.5
L2
11
Material
KT - Plastic
Outer diameter d1
63
Outer diameter x1
63.5
R
19
RoHS
Ja
Weight
0.144 kg
d3
26
d4
48
d5
50.5
d6
M 6
d7
6
d8 Teilkreis Ø
45.4
l3
30
l4
10.5
l5
16
