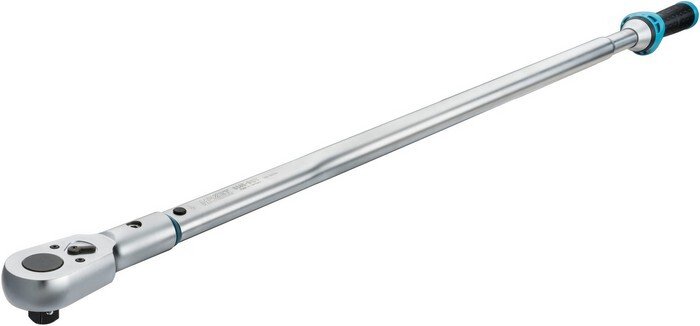

Torque spanner

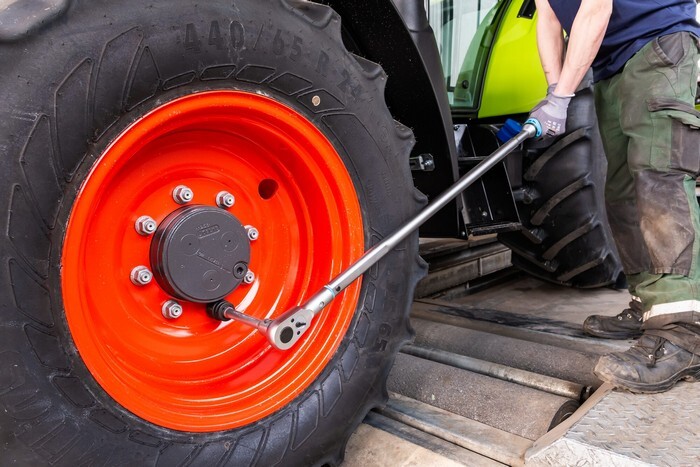

· User-friendly reversible ratchet. – SYSTEM 5000-3CT – · Accuracy ± 3% of the scale value (in direction of actuation for right-hand tightening) (5107-3CT ± 4% accuracy of scale value) · For left-hand tightening, use our torque wrenches with insert tool · Safe:· Haptic (close-gap release) · Audible ("click" sound) · Designed for rough workshop use · Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry · Optimised sealing ring to protect against debris · Ratchet repair set for customer-oriented self-assembly enables decades of use · Handle with better grip for easier power transmission · Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle · Safe locking of the setting values by latching function on the rotary assembly · Rotary assembly in triangular form prevents uncontrolled rolling · Lock symbols indicate the respective locking status · Can be attached to the cable loop through openings on the locking rotary assembly · Easy-to-read, high-contrast scale · Permanent readability due to laser marking on the scale bush · Integrated shift lever - 5121-3CT – 5123-3CT: shift lever with idle function – reduces risk of injury and malfunction · With calibration certificate and serial number · Delivery in sturdy Hexa plastic box · DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1 · Made in Germany · Output: 3/4 inch (20 mm) square, solid · Dimensions / length: 1271 mm · Net weight: 6.7 kg · For manual operation · Torque range min-max: 300–800 Nm · Accuracy: 3 % · Scale Graduation (Nm): 2.5 Nm · Actuating force min.-max. kg: 26.2–71.0 kg · Number of teeth: 32 (Opening angle 11.25°) · Head Thickness a: 28.5 mm · Head Width b: 64 mm · No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required. SYSTEM 5000-3CT workshop torque wrench ∙ 1–800Nm ∙ with reversible ratchet ∙ accuracy ±3/4%
